MotorbyMotor Front Brake Rotors & Pads + Wheel Bearing and Hub Assembly Fits for 2009-2010 Dodge Ram 1500, 2011 Ram 1500 w/ABS 5 Lugs


Out of stock
Vendor: MotorbyMotorSKU: BRF12067053BK+D1084+515126x2N/AAvailability : In StockIn StockOut of stockCategories: Brakes,Rotors & Pads
  • Description
  • Description
  • MotorbyMotor Non-Noise and Vibration Wheel Bearing and Hub Assemblies are a High Quality Alternative to Original Equipment Parts.These Unitized Wheel Bearings Contain Dual Ball or Tapered Roller Bearing Elements Sealed with High-Temperature Lifetime Lubrication. MotorbyMotor Cross Drilled & Slotted Brake Rotors Uses Some of the Strictest Standards When Making Them. All of the Rotors are Machine Finished and Mill Balanced for a Smooth Finish and Vibration Resistance.

    Replacement for 2009-2010 Dodge Ram 1500 (MFG. FROM 12/08/08)
    Replacement for 2011 Ram 1500

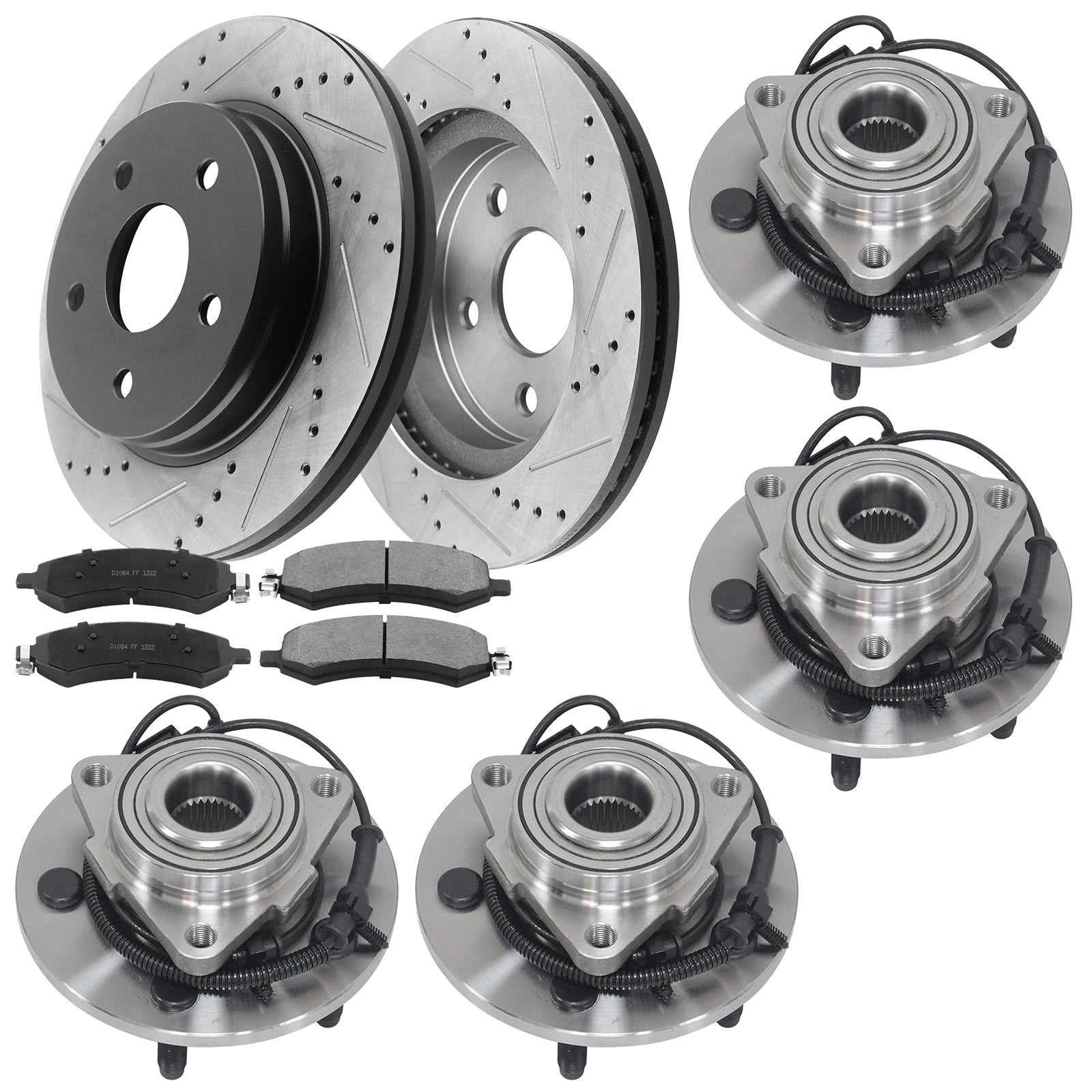

    Kit Includes:

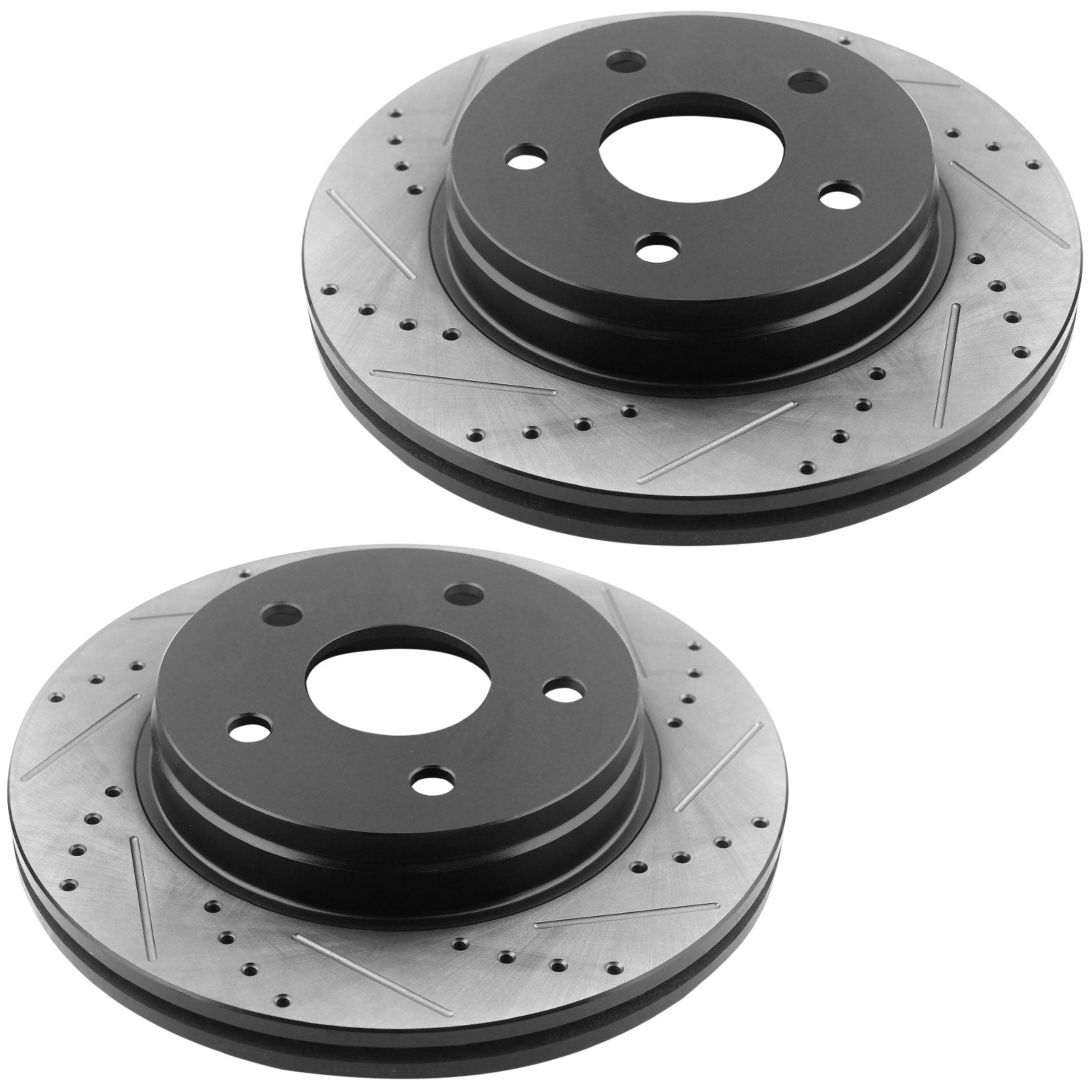

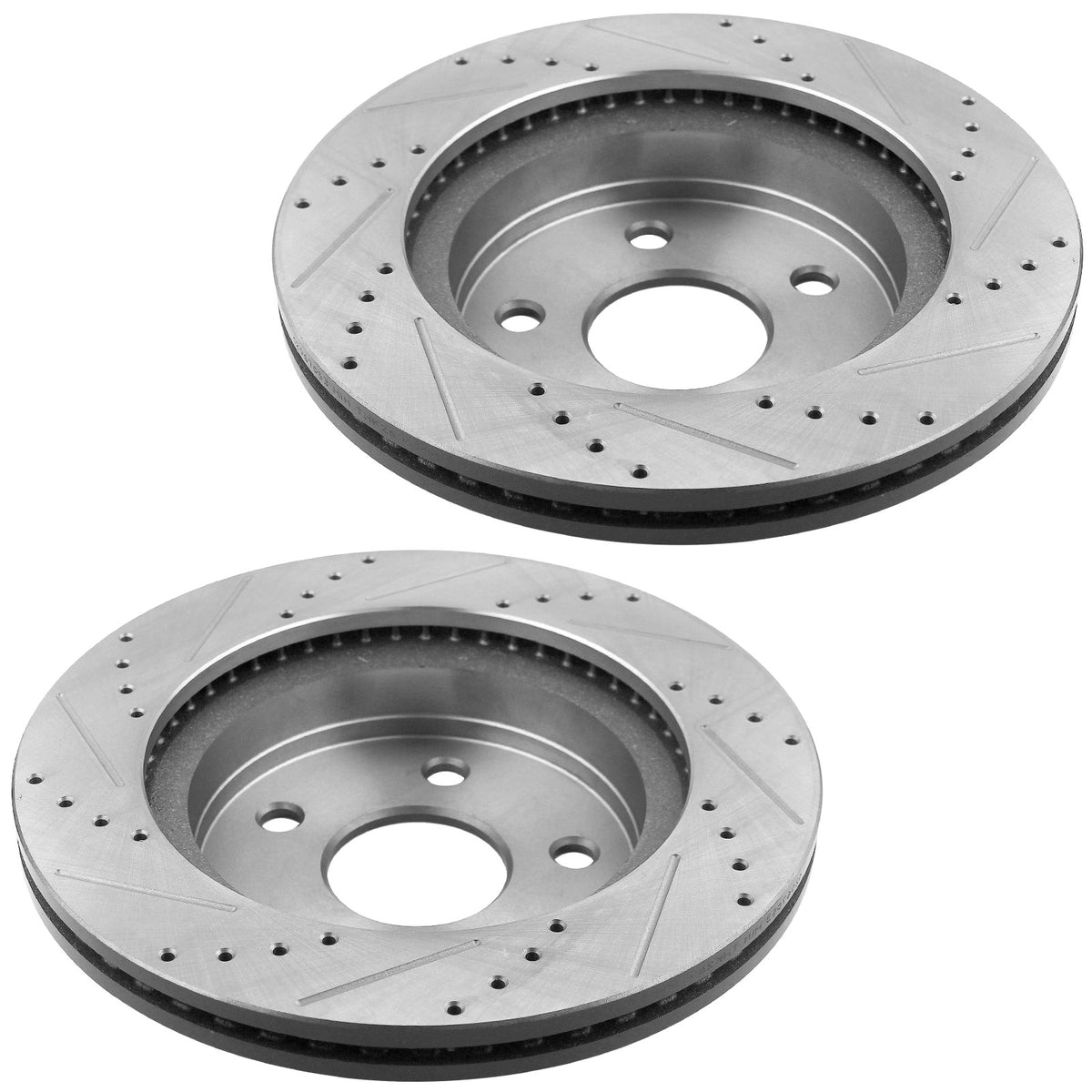

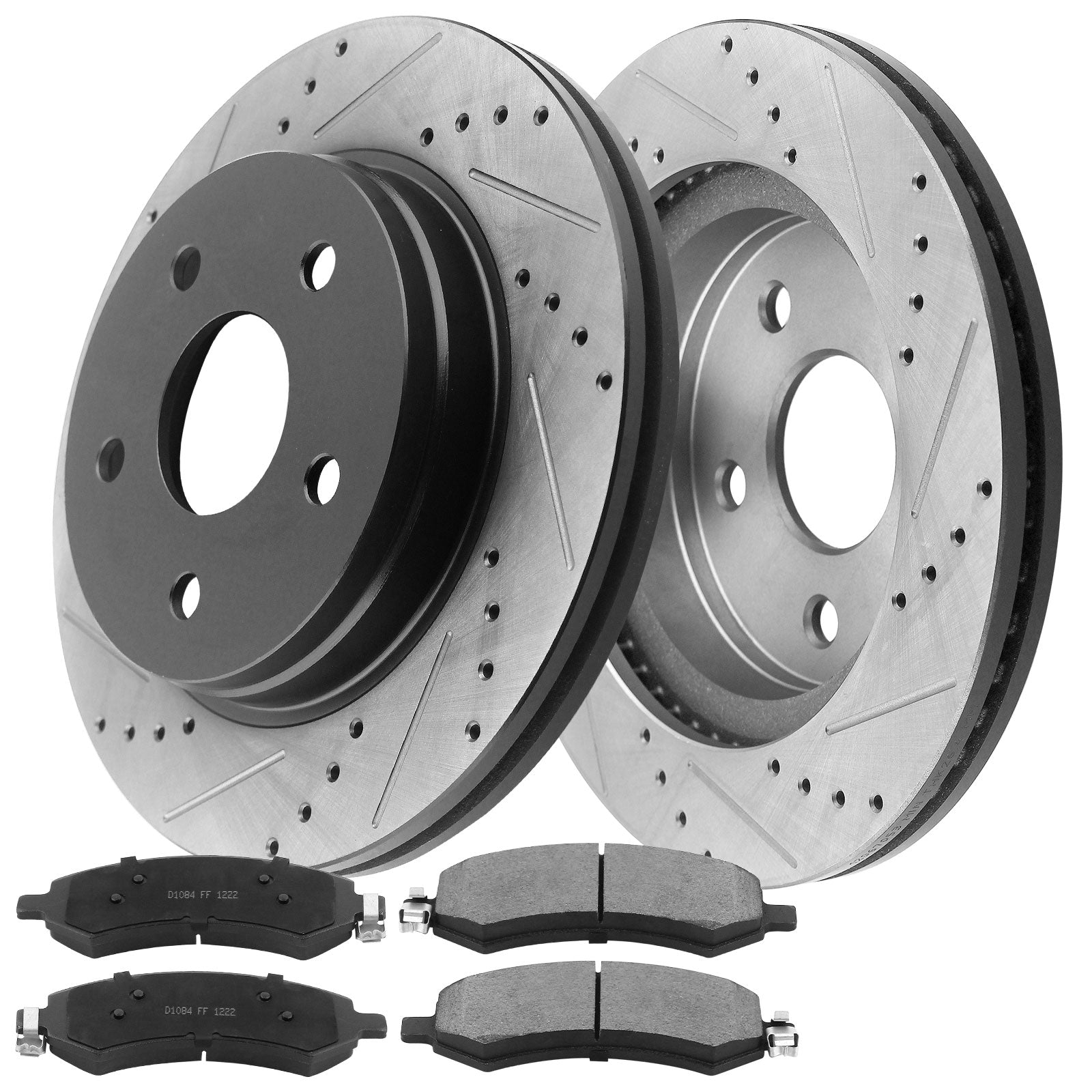

    2x Front Drilled & Slotted Brake Rotors -S-53005

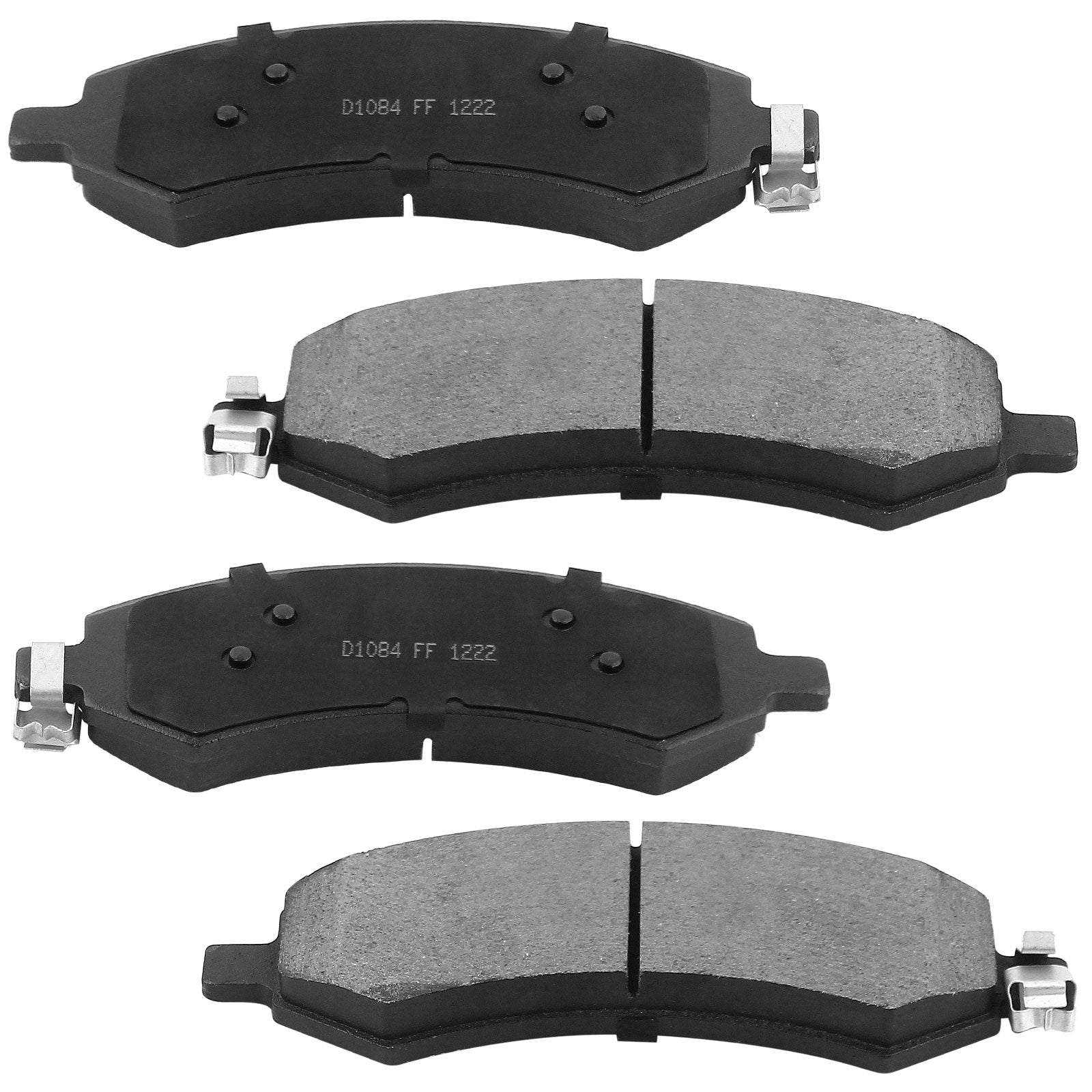

    2x Front Ceramic Brake Pads (Hardware Included) -P-1084
    2x Front Wheel Hub Bearing - 515126

    Front Brake Kits Specification-53005
    Outer Diameter mm: 336
    (S)olid or (V)ented: Vented
    Height mm: 67.3
    Normal Thickness mm: 28
    Min. Thick mm (Discard): 26.4
    Hub Holes/Wheel Reg mm: 78.5
    Number of Studs: 5
    Bolt Circle Diameter mm: 139.7
    Bolt/Hole Diameter/Stud Size: 17mm
    Vane Style: Straight
    Mounting Type: Floating
    Placement on Vehicle: Front, Left, Right
    Surface Finish: Black Electrolysis Coated£»E-coating£»Silver Zinc Dichromate
    Interchange Part NumberCentric: 12067053, Aimco: 53005, D1084

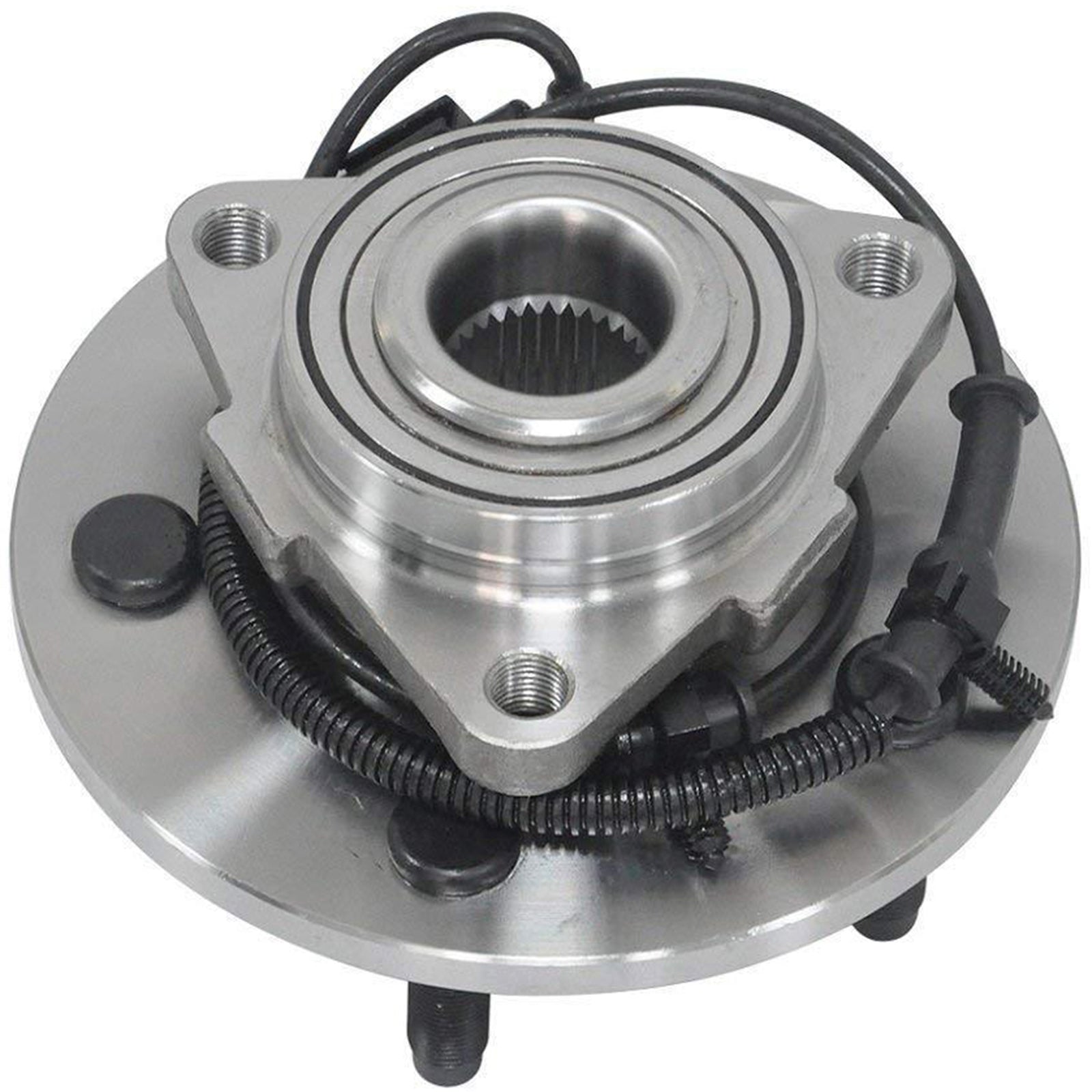

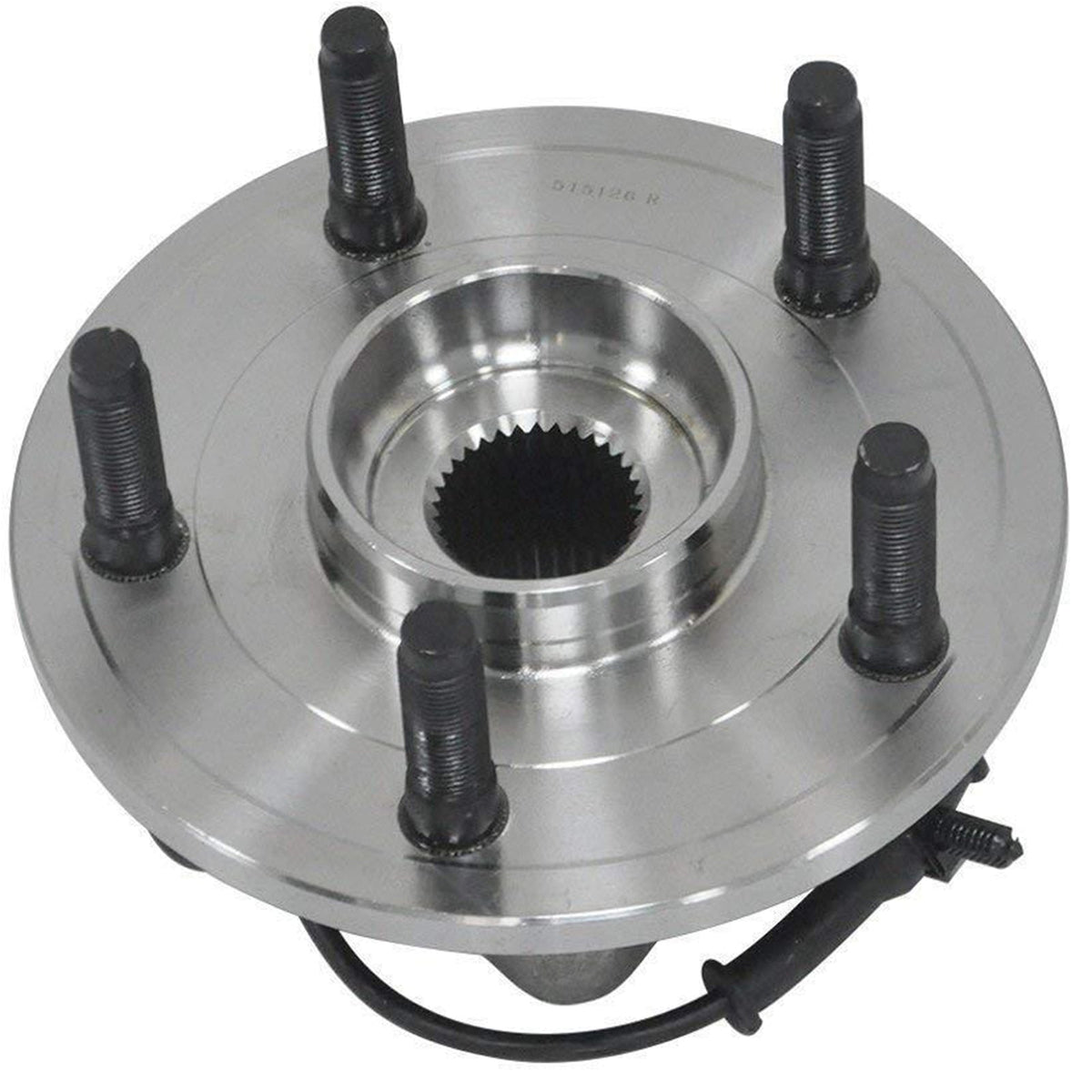

    MotorbyMotor 515126 Front Wheel Bearing and Hub Assembly
    Anti Lock Brake Sensor Include£ºYes
    Bolt Circle Diameter (IN)£º5.500
    Bolt Circle Diameter (MM)£º183.000
    Brake Pilot Diameter (MM)£º78.400
    Flange Bolt Hole Quantity£º3
    Flange Diameter (MM)£º183.000
    Flange Offset (MM)£º49.800
    Flange Shape£ºTriangle
    Hub Pilot Diameter (MM)£º90.000
    Spline Quantity£º33
    Wheel Pilot Diameter (MM):77.700
    Finish: Polished, Rust Protected
    Placement on Vehicle: Left, Right, Front
    Interchange Part Number: 515126,WE61050,BR930808,68024245AA

    MotorbyMotor has been committed to providing the best parts, prices and customer service in the automotive aftermarket industry.

    Our rapidly-expanding product line includes  Wheel Bearing & Hub Assembly, Drilled & Slotted Brake Rotors, Ceramic Brake Pads, Arm Control, AC Compressor,   Carburetor, and more.

    Our return policy is effective for 30 Days since receiving your product.

    To be eligible for a return, your item must be unused, in the same condition that you received it, and it must also be in the original packaging. For refunds(if applicable),please send an email to with your full name, order number, item description and the reason for your return.
