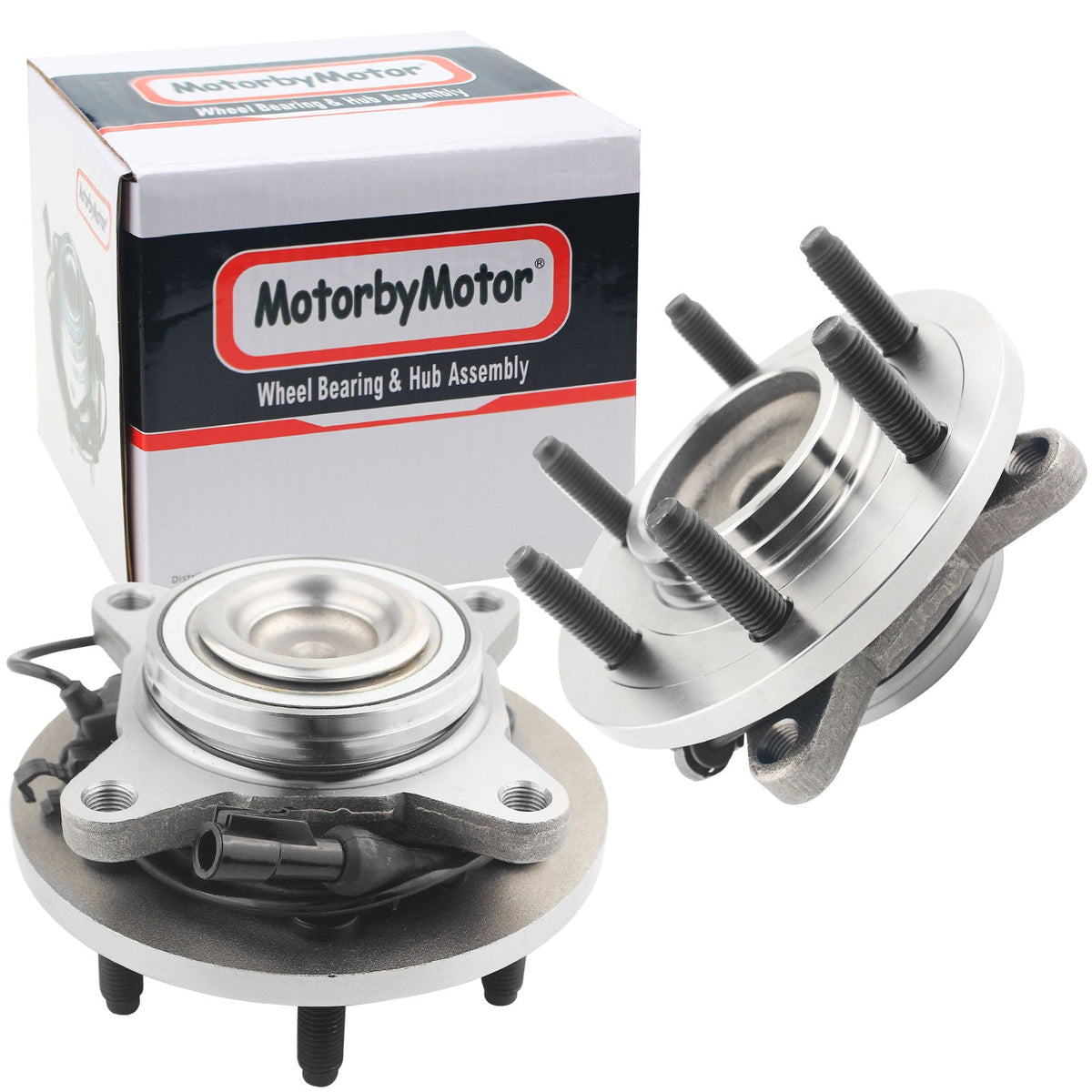

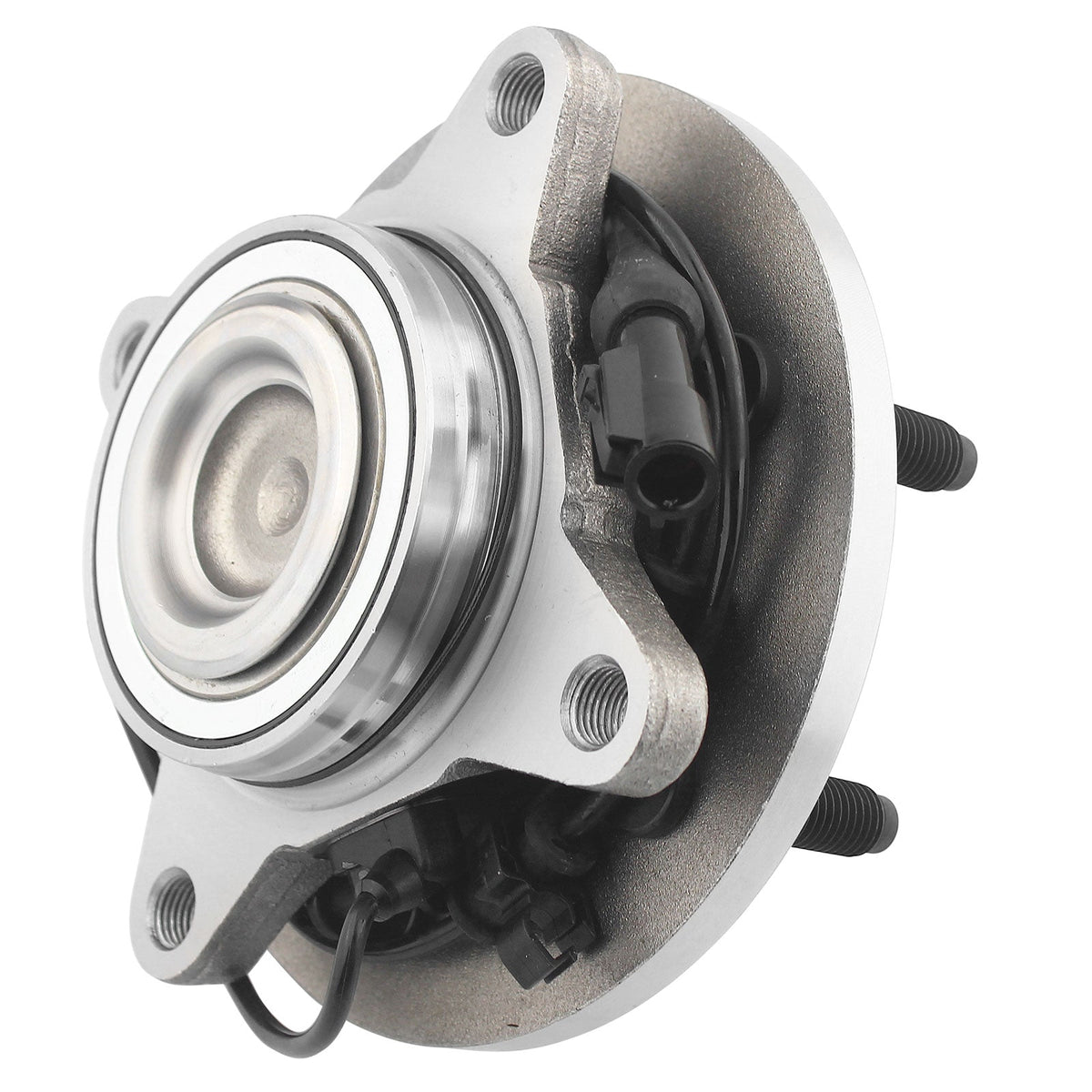

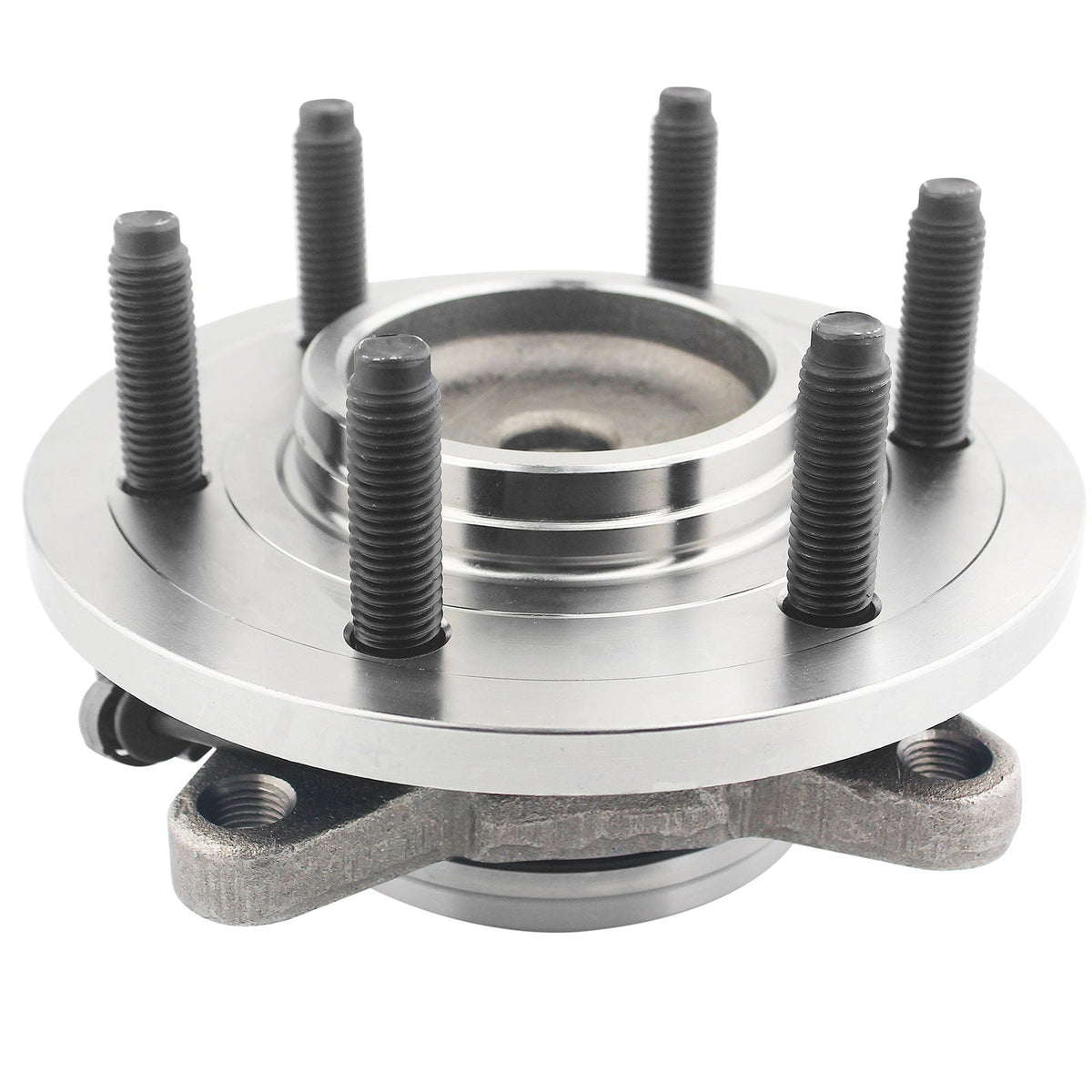

Front Hub Assembly for 2002-2006 Ford Expedition & Lincoln Navigator (2WD)
Steel front hub assembly with ABS sensor and wiring harness. Fits driver or passenger side on 2WD models, ensuring proper fit and performance.
What's Included
- Front hub assembly (driver or passenger side)
- ABS sensor with round connector
- Wiring harness, 48.62 inches long
- 6 lug bolts (M14-2.0 thread)
- 6 flange bolts (M14-1.50 thread, 1.830 inch size)
Product Specifications
- Position: Driver (LH) or Passenger (RH) side front
- ABS Sensor Included: Yes
- Number of Mounting Bolts to Knuckle: 4
- Driven or Non-Driven: Non-Driven
- ABS Ring Type: Tone
- Number of ABS Sensor Ring Teeth: 54
- Total Hub Diameter: 7.204 inch
- Hub Centerbore Diameter: 5.314 inch
- Total Hub Height: 4.610 inch
- Flange Diameter: 7.204 inch
- Flange Offset: 1.795 inch
- Outer Ring Width: 2.12 inch
- Inner Ring Width: 0.94 inch
- Hub Pilot Diameter: 3.543 inch
- Flange Shape: Square
- Material: Steel
- Bearing Type: Tapered
Vehicle Compatibility
| Year | Make | Model | Details |
|---|---|---|---|
| 2002-2006 | Ford | Expedition | Front, 2WD |
| 2002-2006 | Lincoln | Navigator | Front, 2WD |
10-year warranty included for reliability.
3-7 days delivery, orders processed the next business day.
