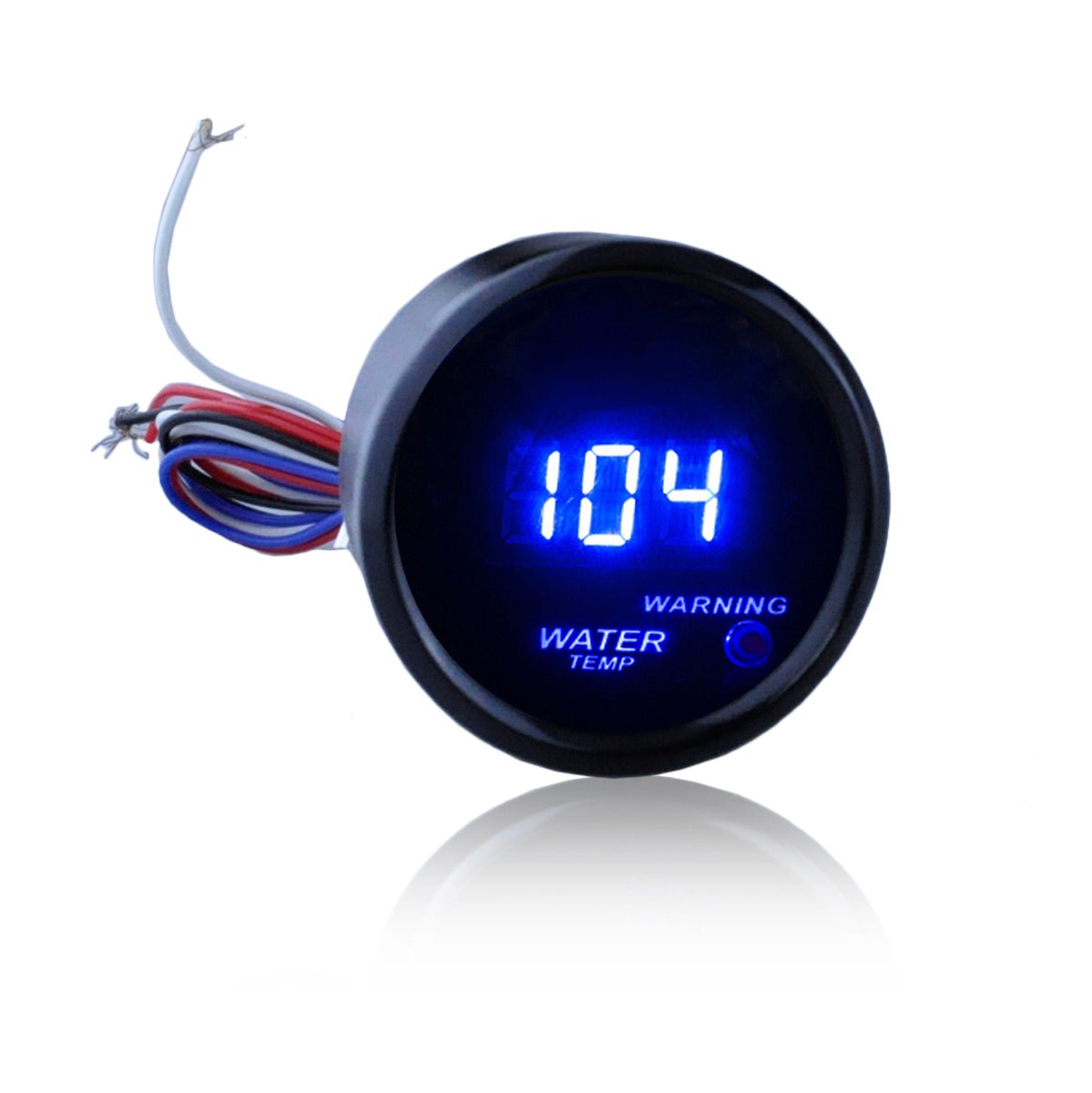

Digital Water Temperature Gauge 2" 52mm Electronic Blue LED Water Temp Gauge for Car Automotive(Fahrenheit) DC 12V
Digital Water Temperature Gauge 2" 52mm Electronic Blue LED Water Temp Gauge for Car Automotive(Fahrenheit) DC 12V
In stock
Regular price
$19.45
Product details
- Vendor MotorbyMotor
- SKU RB-WT-B
Please contact us if you are unsure about the fitment.
SPECIFICATION
Color:Black
LCD Size:2in/52mm
Unit:Fahrenheit
Diameter: 2"/52mm.
Waring light: >212 ℉
Readout:Blue digital LED
Measurement Object:Water
Power: DC(10-15V) 12V Professional
Sensor Mounting Thread: NPT 1/ 8 "
Read:104-300 ℉ Water Temp Gauge
Visual Angle:≤180°
Material:ABS plastic
Water temperature meter size: 5.7 * 5.5cm / 2.2 * 2.2in (diameter * height)
Water temperature meter weight: 72g / 2.5oz
Package size: 17 * 12 * 7.8cm / 6.7 * 4.7 * 3.1in
Package weight: 215g / 7.6oz
Package including:
1 * Water Temperature Meter
1 * Water Temperature Sensor
How to installation:
1.Gauge May Be Mounted In 2"/52mm Dia holes Or In Auto Gauge Custom Mounted Panels .
Secure Gauge With Mounting Clamps Supplied.
2.Drill 3/8" Dia .
Holes And Install Rubber Grommets Where Pressure Or Vacuum Line Passes Through Sheet Mental Such As Firewall.
3.Attach Nylon Pressure Line To Fitting On Back Of Gauge Using Adaptor ,Ferrule ,And Compression nut .
Route Line Through Grommets To Engine Compartment .
Connect Line To Pressure port On Engine By Using 1/8" Adaptor Ferrule And Compression Nut For Turbo And Prossure Gauge Or 1/8" Adaptor And Fitting For Vacuum Gauge.
4.Start Engine And Thoroughly Check Installation For Leaks.
Twist In Light Socket Assembly And Connect One Wire(Yellow) To Dash Lighting Circut Or Other 12V Power Source And The Other Wire(Black) To A Good Ground.
Color:Black
LCD Size:2in/52mm
Unit:Fahrenheit
Diameter: 2"/52mm.
Waring light: >212 ℉
Readout:Blue digital LED
Measurement Object:Water
Power: DC(10-15V) 12V Professional
Sensor Mounting Thread: NPT 1/ 8 "
Read:104-300 ℉ Water Temp Gauge
Visual Angle:≤180°
Material:ABS plastic
Water temperature meter size: 5.7 * 5.5cm / 2.2 * 2.2in (diameter * height)
Water temperature meter weight: 72g / 2.5oz
Package size: 17 * 12 * 7.8cm / 6.7 * 4.7 * 3.1in
Package weight: 215g / 7.6oz
Package including:
1 * Water Temperature Meter
1 * Water Temperature Sensor
How to installation:
1.Gauge May Be Mounted In 2"/52mm Dia holes Or In Auto Gauge Custom Mounted Panels .
Secure Gauge With Mounting Clamps Supplied.
2.Drill 3/8" Dia .
Holes And Install Rubber Grommets Where Pressure Or Vacuum Line Passes Through Sheet Mental Such As Firewall.
3.Attach Nylon Pressure Line To Fitting On Back Of Gauge Using Adaptor ,Ferrule ,And Compression nut .
Route Line Through Grommets To Engine Compartment .
Connect Line To Pressure port On Engine By Using 1/8" Adaptor Ferrule And Compression Nut For Turbo And Prossure Gauge Or 1/8" Adaptor And Fitting For Vacuum Gauge.
4.Start Engine And Thoroughly Check Installation For Leaks.
Twist In Light Socket Assembly And Connect One Wire(Yellow) To Dash Lighting Circut Or Other 12V Power Source And The Other Wire(Black) To A Good Ground.
