- Description

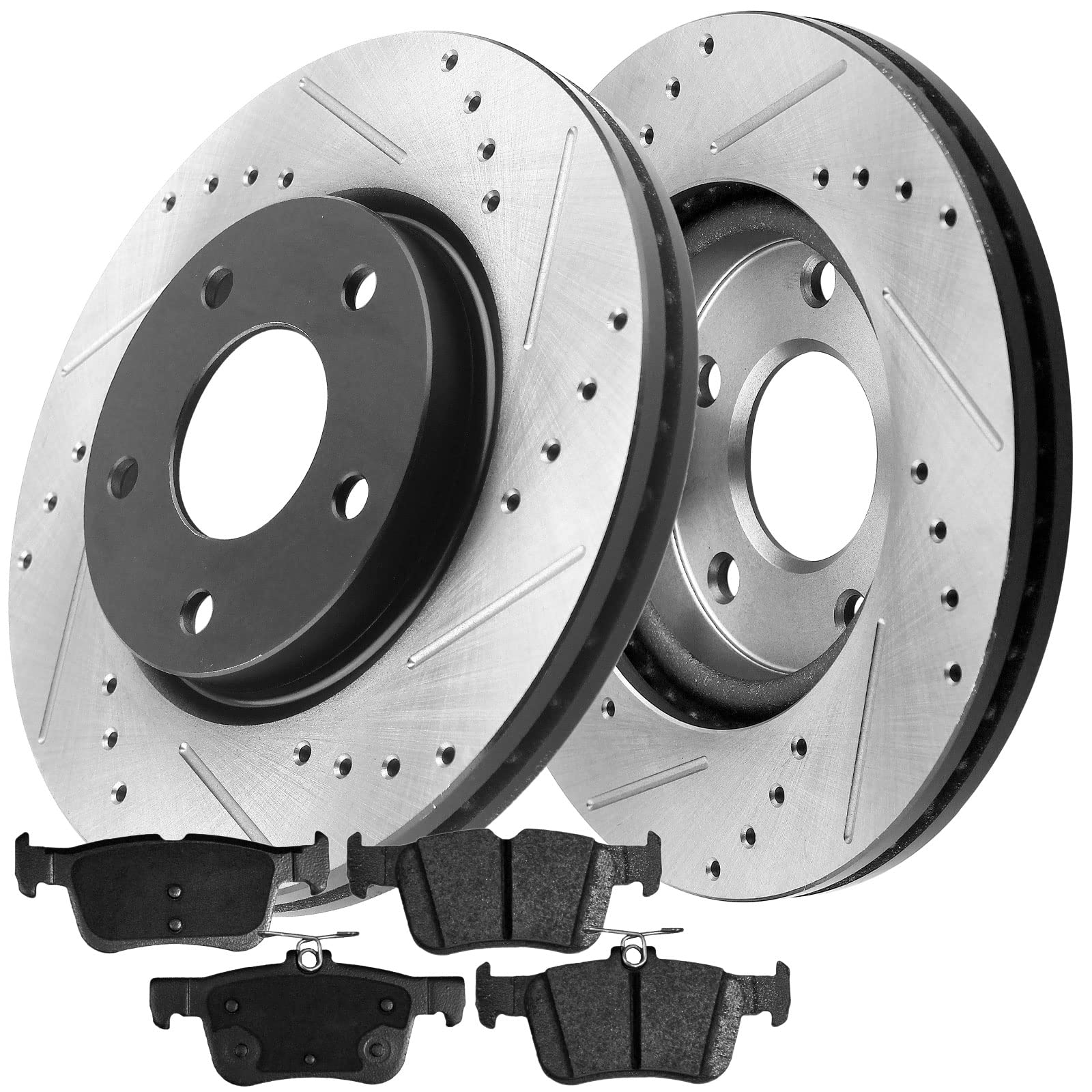

MotorbyMotor Cross Drilled & Slotted Brake Rotors Uses Some of the Strictest Standards When Making Them. All of the Rotors are Machine Finished and Mill Balanced for a Smooth Finish and Vibration Resistance.
These 302mm/11.88 Inch Brake Rotor Kits Fits for:
2013 - 2016 Ford Fusion (Except Energi Models)
2017 - 2019 Ford Fusion (302mm REAR Rotor ONLY)
2013 - 2016 Lincoln MKZ (Hybrid ONLY)
Includes
1x 120.61103L Drilled and Slotted Brake Rotor, Left-5514
1x 120.61103R Drilled and Slotted Brake Rotor, Right-5514
1x D1665 Ceramic Brake Pads, 2 Wheel Set-D1665
Specification:
Outer Diameter mm: 302.0
(S)olid or (V)ented: Solid
Height mm: 50.9
Normal Thickness mm: 11.0
Min. Thick mm (Discard): 9.5
Hub Holes/Wheel Reg mm: 63.6
Number of Studs: 5
Bolt Circle Diameter mm: 108.0
Bolt/Hole Diameter/Stud Size: 15.3mm
Mounting Type: Floating
Placement on Vehicle: Rear, Left & Right
Finish: Silver Zinc Dichromate; Black Electrolysis Coated; E-coating
Interchange Part Number: Centric:12061103£¬D1665, Aimco:54194, D1665, P1665
These 302mm/11.88 Inch Brake Rotor Kits Fits for:
2013 - 2016 Ford Fusion (Except Energi Models)
2017 - 2019 Ford Fusion (302mm REAR Rotor ONLY)
2013 - 2016 Lincoln MKZ (Hybrid ONLY)
Includes
1x 120.61103L Drilled and Slotted Brake Rotor, Left-5514
1x 120.61103R Drilled and Slotted Brake Rotor, Right-5514
1x D1665 Ceramic Brake Pads, 2 Wheel Set-D1665
Specification:
Outer Diameter mm: 302.0
(S)olid or (V)ented: Solid
Height mm: 50.9
Normal Thickness mm: 11.0
Min. Thick mm (Discard): 9.5
Hub Holes/Wheel Reg mm: 63.6
Number of Studs: 5
Bolt Circle Diameter mm: 108.0
Bolt/Hole Diameter/Stud Size: 15.3mm
Mounting Type: Floating
Placement on Vehicle: Rear, Left & Right
Finish: Silver Zinc Dichromate; Black Electrolysis Coated; E-coating
Interchange Part Number: Centric:12061103£¬D1665, Aimco:54194, D1665, P1665
