- Description

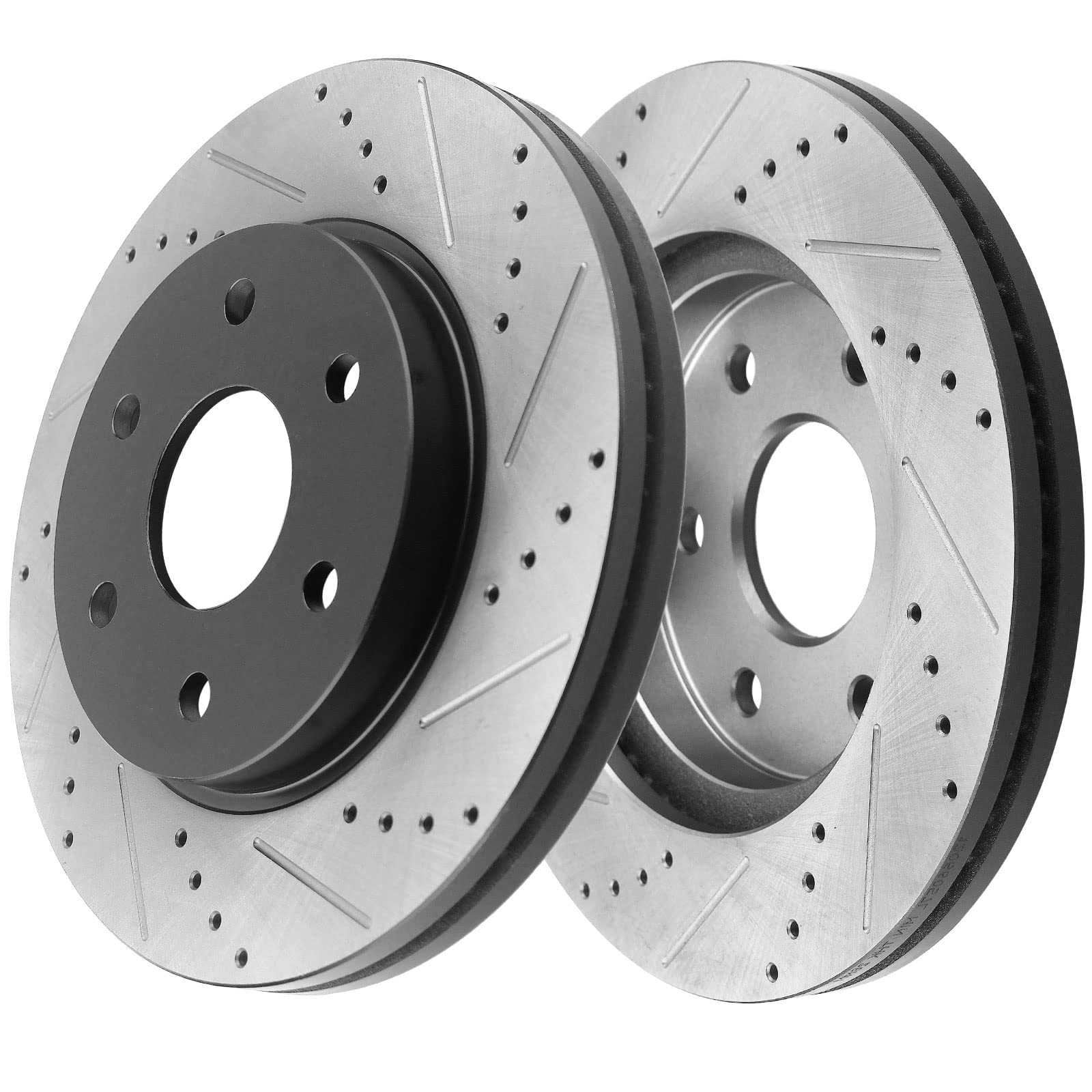

MotorbyMotor Cross Drilled & Slotted Brake Rotors Uses Some of the Strictest Standards When Making Them. All of the Rotors are Machine Finished and Mill Balanced for a Smooth Finish and Vibration Resistance.
These 348.2mm/13.71 Inch Brake Rotor Kits Fits for:
2015 - 2018 Ford F-150 (6 Lug Wheels Manual Parking ONLY)
2012 - 2014 Ford F-150 (6 Lug Wheels ONLY)
Includes
1x 120.65135L Drilled and Slotted Brake Rotor, Left-54186
1x 120.65135R Drilled and Slotted Brake Rotor, Right-54186
Specification:
Outer Diameter mm: 348.2
(S)olid or (V)ented: Vented
Height mm: 80.2
Normal Thickness mm: 25
Min. Thick mm (Discard): 23
Hub Holes/Wheel Reg mm: 90.1
Number of Studs: 6
Bolt Circle Diameter mm: 135
Bolt/Hole Diameter mm or Stud Size: 15.7
Vane Style: Straight
Mounting Type: Floating / DIH
Placement on Vehicle:Rear, Left & Right
Finish: Silver Zinc Dichromate; Black Electrolysis Coated; E-coating
Interchange Part Number: Aimco: 54186; Centric: 120.65135
These 348.2mm/13.71 Inch Brake Rotor Kits Fits for:
2015 - 2018 Ford F-150 (6 Lug Wheels Manual Parking ONLY)
2012 - 2014 Ford F-150 (6 Lug Wheels ONLY)
Includes
1x 120.65135L Drilled and Slotted Brake Rotor, Left-54186
1x 120.65135R Drilled and Slotted Brake Rotor, Right-54186
Specification:
Outer Diameter mm: 348.2
(S)olid or (V)ented: Vented
Height mm: 80.2
Normal Thickness mm: 25
Min. Thick mm (Discard): 23
Hub Holes/Wheel Reg mm: 90.1
Number of Studs: 6
Bolt Circle Diameter mm: 135
Bolt/Hole Diameter mm or Stud Size: 15.7
Vane Style: Straight
Mounting Type: Floating / DIH
Placement on Vehicle:Rear, Left & Right
Finish: Silver Zinc Dichromate; Black Electrolysis Coated; E-coating
Interchange Part Number: Aimco: 54186; Centric: 120.65135
