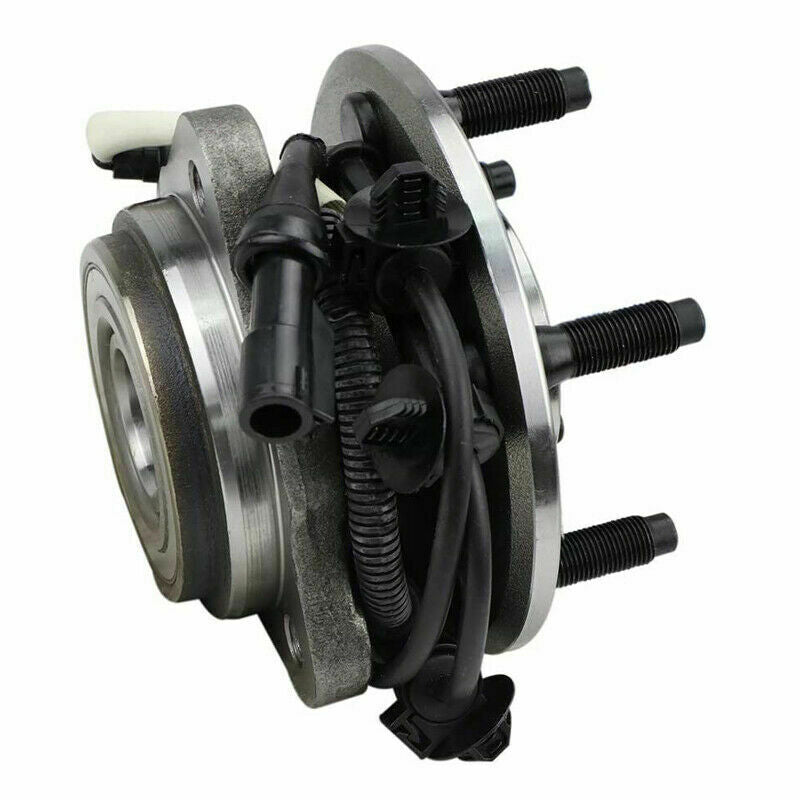

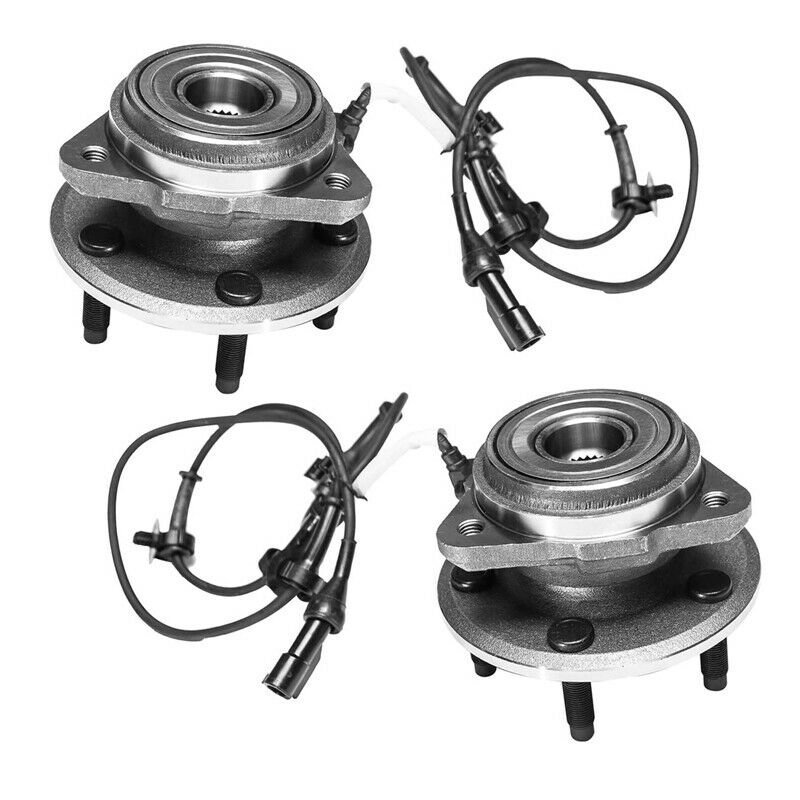

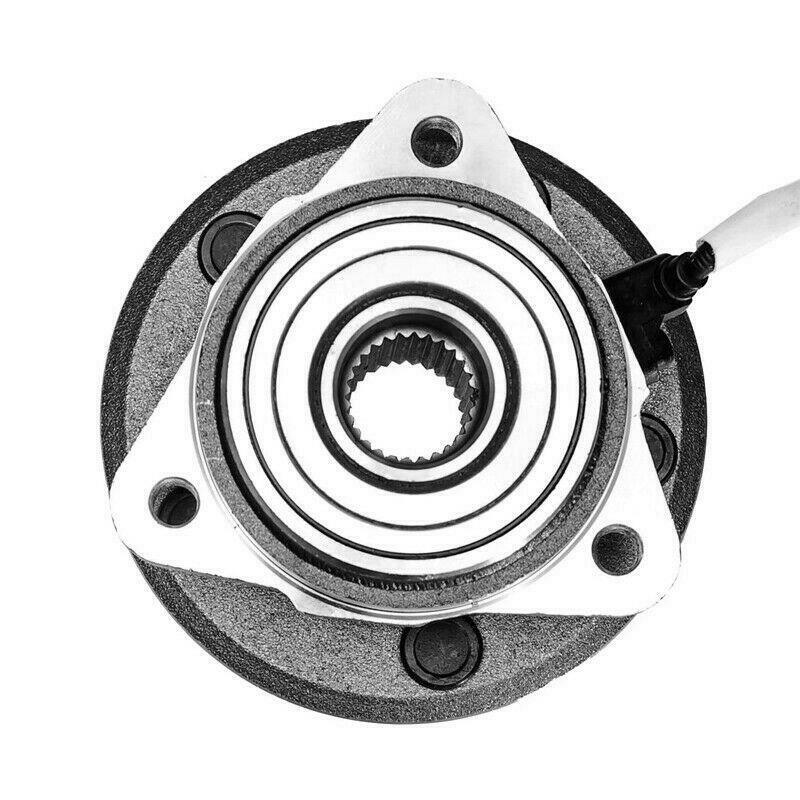

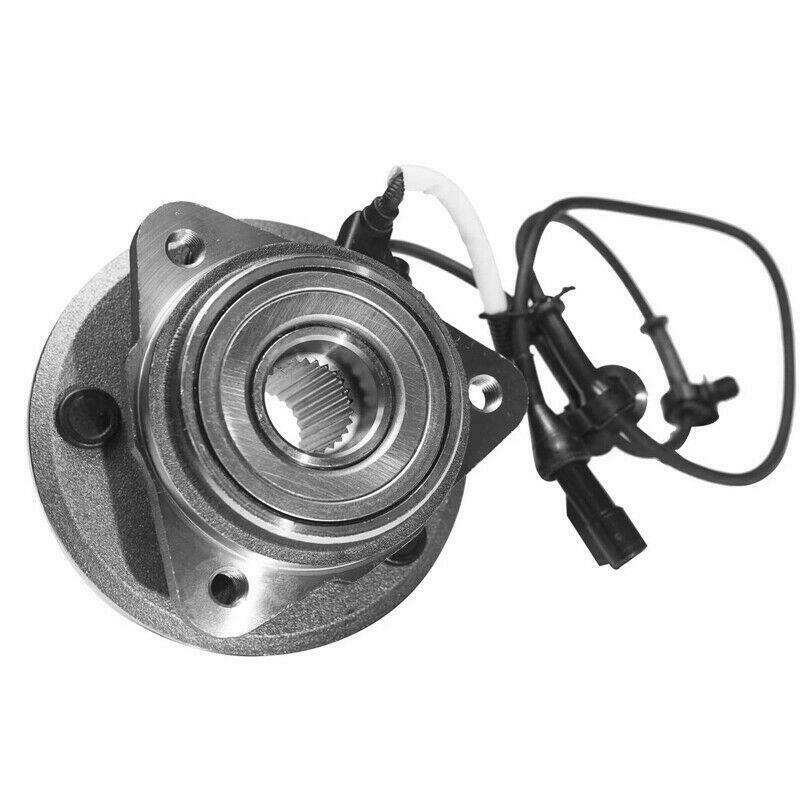

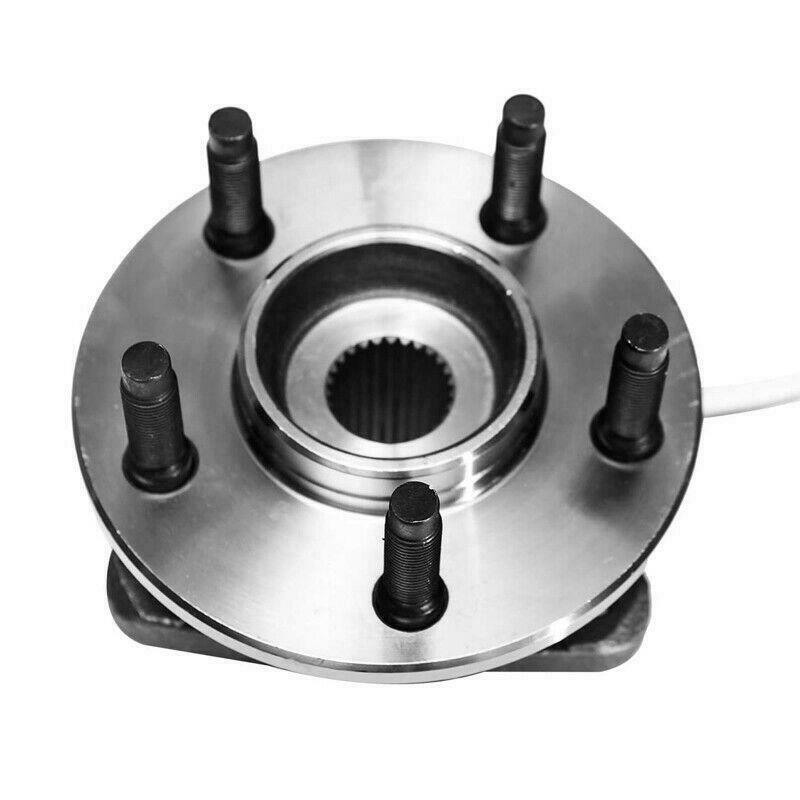

MotorbyMotor Front Wheel Bearing and Hub Assembly 515003
High-quality replacement wheel bearing and hub assembly with dual ball or tapered roller bearings, sealed with lifetime lubrication. Designed for direct fit and reliable performance.
What's Included
- 1 x Front Wheel Bearing and Hub Assembly (Part Number: 515003)
Product Specifications
- Anti Lock Brake Sensor Include: Yes
- Bolt Circle Diameter (IN): 4.500
- Bolt Circle Diameter (MM): 114.200
- Brake Pilot Diameter (MM): 71.900
- Flange Bolt Hole Quantity: 3
- Flange Diameter (MM): 149.400
- Flange Offset (MM): 56.200
- Flange Shape: Modified
- Hub Pilot Diameter (MM): 120.700
- Spline Quantity: 27
- Wheel Pilot Diameter (MM): 70.500
- Wheel Stud Quantity: 5
- Placement on Vehicle: Front, Left, Right
- Fitment Type: Direct Replacement
- Finish: Polished, Rust Protected
- Other Part Numbers: 515003, 515051, 515052, WE61221, BR930252, BR930345, BR930452, SP450200
Vehicle Compatibility
| Year | Make | Model | Details |
|---|---|---|---|
| 2000 | Ford | Ranger | 4WD/4x4, After 06/22/2000, Round ABS Wire Connector |
| 2001-2009 | Ford | Ranger | 4WD/4x4 |
| 1995-2001 | Ford | Explorer | AWD, 4WD Models Only |
| 2001-2003 | Ford | Explorer Sport | 4WD, 4-Wheel ABS |
| 2001-2005 | Ford | Explorer Sport Trac | 4WD, 4-Wheel ABS |
| 2001-2009 | Mazda | B4000 | 4WD/4x4 |
| 2001-2002 | Mazda | B3000 |
