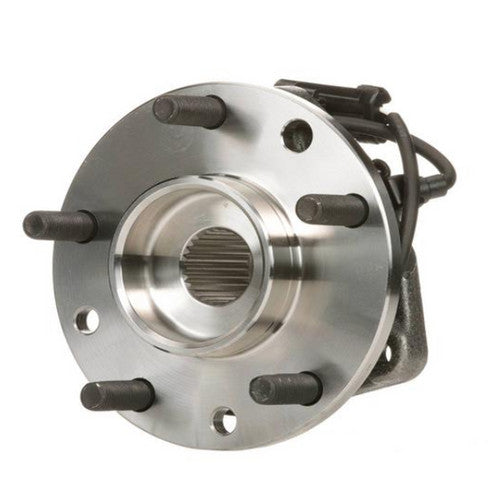

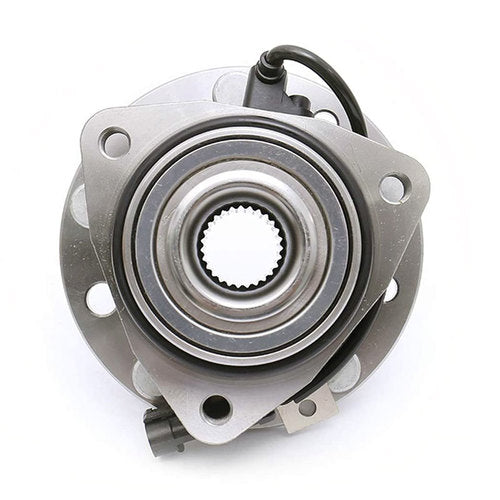

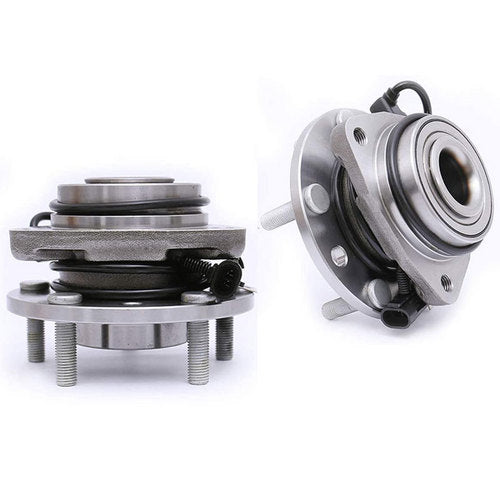

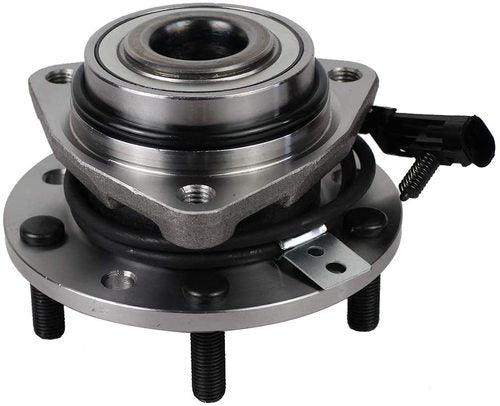

Front Hub Assembly with ABS Sensor
Driver or passenger side front hub assembly with ABS sensor and wiring harness. Designed for driven wheels with 3 mounting bolts and 5 lug bolts.
What's Included
- Front hub assembly (Driver LH or Passenger RH)
- ABS sensor with oval connector
- Wiring harness, 32.25 inches
- 5 lug bolts (M12-1.50 thread)
Product Specifications
- Number of Mounting Bolts: 3
- Number of Splines: 27
- ABS Ring Type: Sensor
- Total Hub Diameter: 5.68 in
- Total Hub Height: 4.30 in
- Flange Diameter: 5.68 in
- Flange Offset: 1.85 in
- Hub Pilot Diameter: 3.61 in
- Flange Shape: Triangle
- Flange Bolt Thread Size: M12-1.75
- Material: Steel
- Bearing Type: Ball
Vehicle Compatibility
| Year | Make | Model | Details |
|---|---|---|---|
| 1997-2005 | Chevrolet | Blazer | Front, Driver or Passenger |
| 1997-2004 | Chevrolet | S10 Pickup | Front, Driver or Passenger |
| 1997-2005 | GMC | Jimmy | Front, Driver or Passenger |
| 1997-2004 | GMC | Sonoma | Front, Driver or Passenger |
| 1998-2000 | Isuzu | Hombre | Front, Driver or Passenger |
| 1997-2001 | Oldsmobile | Bravada | Front, Driver or Passenger |
10-year warranty included.
3-7 days delivery, orders processed the next business day.
