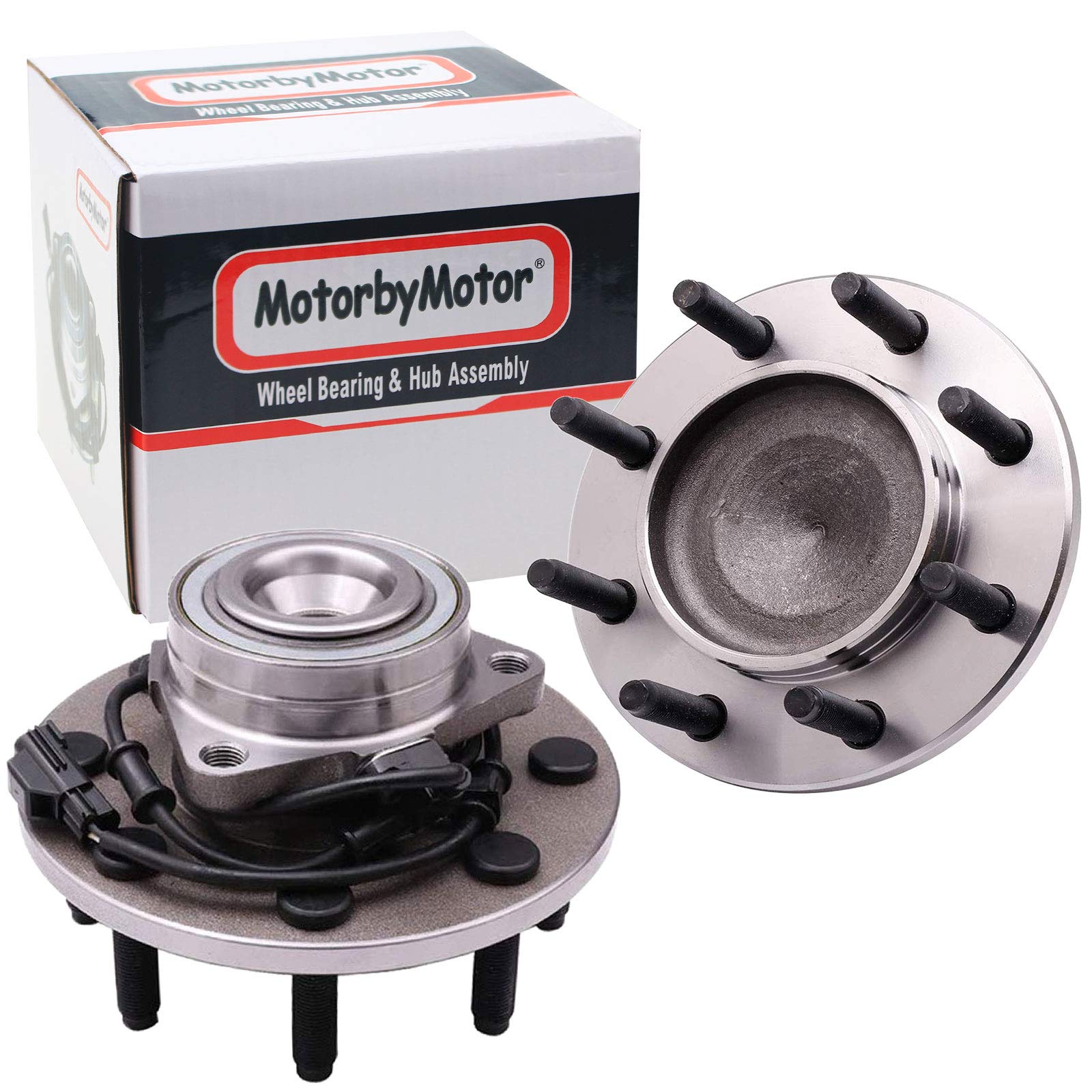

- Description
Description:
Position:Driver(LH Left) or Passenger(RH Right) Side Front
ABS Sensor Included: Yes
Wiring Harness Included: Yes
Wiring Harness Length (in): 37.99 Inch
Number Of Mounting Bolts To Knuckle: 3
Number Of Lug Bolts Included: 8
Number Of Flange Bolts Included: 8
Driven Or Non-Driven: Non-Driven
Number Of ABS Sensor Ring Teeth: 55
Lug Bolt Thread Size: 9/16-18 Inch
Total Hub Diameter (in): 8.070 Inch
Total Hub Diameter (mm): 205mm
Hub Centerbore Diameter (in): 6.496 Inch
Hub Centerbore Diameter (mm): 165mm
Total Hub Height (in): 5.236 Inch
Total Hub Height (mm): 133mm
Flange Diameter (in): 8.082 Inch
Flange Diameter (mm): 205.3mm
Flange Offset (in): 1.968 Inch
Flange Offset (mm): 50mm
Flange Shape: Triangle
Flange Bolt Size (in): 2.055 Inch
Flange Bolt Size (mm): 52.2mm
Flange Bolt Thread Size: M14-1.50
Material: Steel
Bearing Type: Tapered
Outer Ring Width (in): 2.12 Inch
Inner Ring Width (in): 0.94 Inch
Hub Pilot Diameter (in): 4.811 Inch
Hub Pilot Diameter (mm): 122.2mm
Fit:
2003 2004 2005 Dodge Ram 2500 Pickup (Front, 2WD)
2003 2004 2005 Dodge Ram 3500 Pickup (Front,2WD)
Position:Driver(LH Left) or Passenger(RH Right) Side Front
ABS Sensor Included: Yes
Wiring Harness Included: Yes
Wiring Harness Length (in): 37.99 Inch
Number Of Mounting Bolts To Knuckle: 3
Number Of Lug Bolts Included: 8
Number Of Flange Bolts Included: 8
Driven Or Non-Driven: Non-Driven
Number Of ABS Sensor Ring Teeth: 55
Lug Bolt Thread Size: 9/16-18 Inch
Total Hub Diameter (in): 8.070 Inch
Total Hub Diameter (mm): 205mm
Hub Centerbore Diameter (in): 6.496 Inch
Hub Centerbore Diameter (mm): 165mm
Total Hub Height (in): 5.236 Inch
Total Hub Height (mm): 133mm
Flange Diameter (in): 8.082 Inch
Flange Diameter (mm): 205.3mm
Flange Offset (in): 1.968 Inch
Flange Offset (mm): 50mm
Flange Shape: Triangle
Flange Bolt Size (in): 2.055 Inch
Flange Bolt Size (mm): 52.2mm
Flange Bolt Thread Size: M14-1.50
Material: Steel
Bearing Type: Tapered
Outer Ring Width (in): 2.12 Inch
Inner Ring Width (in): 0.94 Inch
Hub Pilot Diameter (in): 4.811 Inch
Hub Pilot Diameter (mm): 122.2mm
Fit:
2003 2004 2005 Dodge Ram 2500 Pickup (Front, 2WD)
2003 2004 2005 Dodge Ram 3500 Pickup (Front,2WD)
