Installing a wheel hub and bearing assembly may look simple, but small mistakes can lead to noise, premature failure, ABS issues, or even dangerous wheel separation. Whether you’re a DIY mechanic or a professional installer, knowing what to avoid can save you time, money, and frustration.

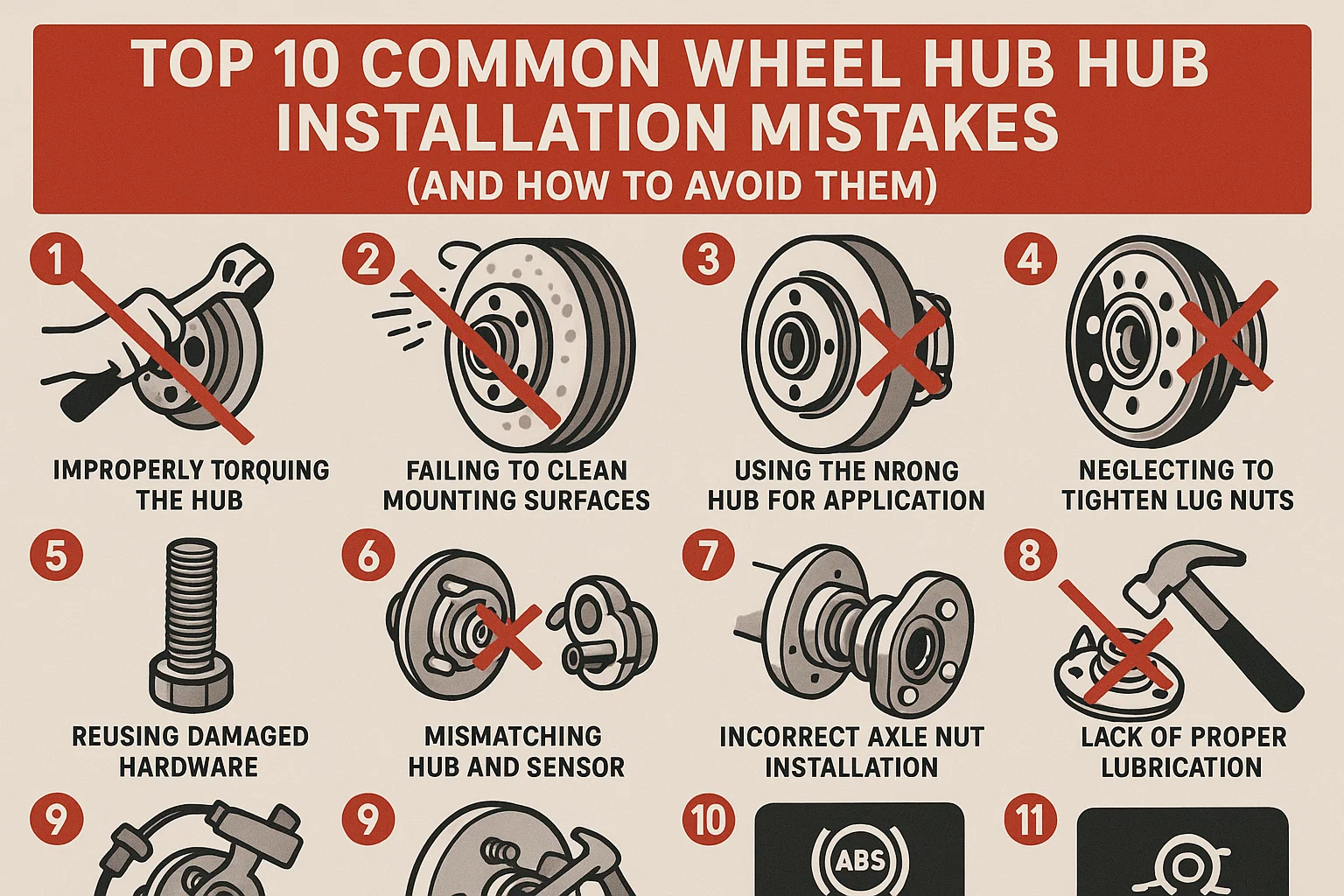

Below are the 10 most common wheel hub installation mistakes and expert tips to prevent them.
1. Over-Torquing or Under-Torquing Bolts
Incorrect torque is the number one cause of early hub failure.
-
Over-torquing damages bearings internally
-
Under-torquing allows movement, causing play and vibration
Pro Tip:
Always use factory torque specifications and a calibrated torque wrench. Never rely solely on an impact gun.
2. Forgetting to Clean the Knuckle Surface
Rust, dirt, and corrosion create misalignment and noise.
What Happens:
A dirty knuckle prevents the hub flange from sitting flat, leading to brake pulsation and uneven bearing load.
Pro Tip:
Use a wire brush + brake cleaner + anti-seize on the mounting surface.
3. Reusing Old Axle Nuts or Hub Bolts
Most axle nuts are single-use—they stretch when torqued.
Risk:
Reusing fasteners leads to loosened hubs, ABS errors, and noise at highway speeds.
Pro Tip:
Always replace nuts and bolts supplied with the new hub.
4. Misconnecting or Pinching the ABS Sensor Wire
Many modern hubs include integrated ABS sensors. Incorrect handling can:
-
Trigger ABS lights
-
Cause loss of traction control (TCS)
-
Create intermittent braking issues
Pro Tip:
Follow the wiring route exactly as the factory route and check connectors for dirt or corrosion.
5. Using Impact Guns on Axle Nuts
Impact guns can exceed torque by 300% in one second.
Result:
-
Instant bearing damage
-
Cracked inner race
-
Premature hub failure (often within 1 month)
Pro Tip:
Use an impact gun to remove, but always torque by hand to install.
6. Not Seating the Hub Fully Before Tightening Bolts
If the hub isn't fully seated, tightening bolts will distort the bearing assembly.
Symptoms:
-
Grinding noise
-
Steering shake
-
ABS activation at low speeds
Pro Tip:
Push the hub flush to the knuckle before tightening any bolts.
7. Cross-Threading Lug Nuts
This is more common on trucks and SUVs with 6-lug or 8-lug patterns.
Problem:
Cross-threading creates uneven wheel load and can shear studs under stress.
Pro Tip:
Always start lug nuts by hand before using tools.
8. Forgetting to Reinstall the Brake Dust Shield
Many DIY jobs leave this out because “it looks optional.”
But:
Dust shields protect:
-
ABS sensors
-
Rotors
-
Hub flange
-
Brake components
Pro Tip:
Never discard the dust shield; replace if rusted or damaged.
9. Ignoring Axle or CV Joint Movement
A failing CV axle can destroy a new hub in weeks.
Check before installation:
-
CV boots (cracks, grease leaks)
-
Axle spline play
-
Clicking when turning
Pro Tip:
If the axle is loose, replace axle + hub at the same time for long-term reliability.
10. Not Doing a Lug Nut Retorque After Test Drive
After installing a wheel hub, lug nuts can settle once driven.
Result if ignored:
-
Rotor warping
-
Wheel vibration
-
Wheel separation in extreme cases
Pro Tip:
After 50–100 miles, recheck torque on all lug nuts.
Honorable Mentions (Bonus Mistakes)
🔥 Applying Grease Inside a Sealed Hub
Never do this. Factory-sealed hubs are pre-greased.
🔥 Forgetting threadlocker on hub bolts (when required)
Many OEMs require blue Loctite.
🔥 Installing the wrong side (left vs. right)
Some hubs are directional.
Conclusion
Wheel hub installation isn’t difficult, but accuracy matters. By avoiding these common mistakes—especially torque errors, dirty mounting surfaces, and ABS sensor mishandling—you can ensure smooth driving, quiet operation, and long hub life.
Whether you’re working on a Ford F-150, Chevy Silverado, Toyota Camry, or any other vehicle, following correct installation procedures is key to safety, performance, and reliability.
If you’re unsure about torque specs, consult OEM service data or choose a professional installer.
